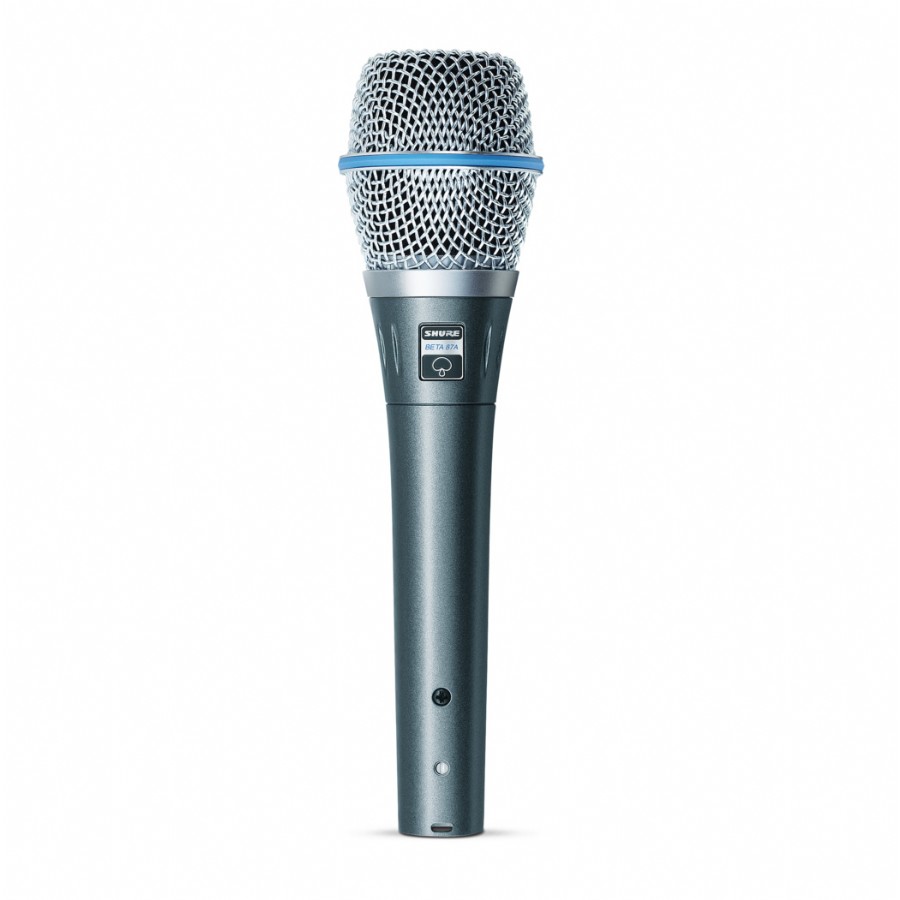

Shure Beta 87A Condenser Mikrofon

Shure Beta 87A Supercardioid Condenser Microphone - Condenser Mikrofon

The Shure Beta 87A Supercardioid Condenser Mic is a new take on an old classic. The Beta 87 was consistently a top choice of performers and audio technicians due to its accuracy, detail, and rich vocal production. Now this longstanding favorite has been redesigned as the Shure Beta 87A. It has a thicker handle that gives a more comfortable feel when hand-held. It also includes a new break-resistant swivel adapter and low-frequency roll-off to compensate for proximity effect and to prevent boominess. The supercardioid pattern provides high gain-before-feedback, and its 3-stage pop filter minimizes breath pop and noise. Frequency response: 50Hz-18kHz.

Shure Beta 87A Supercardioid Condenser Mic Features:

Cartridge Type: Condenser (electret bias)

Frequency Response: 50 to 20,000 Hz

Polar Pattern: Supercardioid

Output Impedance
Rated at 150 ohms (100 ohms actual +/- 20%)
Recommended minimum load impedance: 800 ohms

Sensitivity (at 1,000 Hz)
Open Circuit Voltage -52.5 dBV/Pa (2 mV)
(1 Pa = 94 dB SPL)

Clipping Level (at 1,000 Hz)
1000 ohm Load: -6 dBV (0.5 V)

Maximum SPL (at 1,000 Hz)
140.5 dB (0.25% THD, 1000 ohm load)

Self-Noise
(equivalent sound pressure level; measured with true rms voltmeter)
23.5 dB typical, A-weighted
25.5 dB typical, weighted per DIN 45 405

Dynamic Range
117 dB (maximum SPL to A-weighted noise level)

Signal-to-Noise Ratio
70.5 dB at 94 dB SPL (IEC 651)
(S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.)

Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Power
Phantom Supply Requirement: 11 to 52 Vdc, positive at both pins 2 and 3
Current Drain: 1.0 to 1.2 mA

Connector
Three-pin (XLR) professional audio

Case
Aluminum construction with blue metallic finish, and hardened steel grille with nickel satin chrome plating

Net Weight
207 grams (7.6 oz)
